Papervision 3D Programming Tutorial - Blend Modes

VIEW THE DEMO
DOWNLOAD THE CODE

I've shown you how you can use the standard Flash effect classes, like BlurFilter, to add effects to Papervision models. All you need to do is set useOwnContainer to true and you are free to start adding effects to the effect property.

In the same way you can also modify the blendMode property to modify how the Papervision object displays against other objects that appear below it.

Below is a list of the blend modes available to flash (this was taken from here).

1

"normal"

The movie clip appears in front of the background. Pixel values of the movie clip override those of the background. Where the movie clip is transparent, the background is visible.

2

"layer"

Forces the creation of a temporary buffer for precomposition for the movie clip. This is done automatically if there is more than one child object in a movie clip and a blendMode setting other than "normal" is selected for the child.

3

"multiply"

Multiplies the values of the movie clip constituent colors by those of the background color, and then normalizes by dividing by 0xFF, resulting in darker colors. This setting is commonly used for shadows and depth effects.

For example, if a constituent color (such as red) of one pixel in the movie clip and the corresponding color of the pixel in the background both have the value 0x88, the multiplied result is 0x4840. Dividing by 0xFF yields a value of 0x48 for that constituent color, which is a darker shade than that of the movie clip or that of the background.

4

"screen"

Multiplies the complement (inverse) of the movie clip color by the complement of the background color, resulting in a bleaching effect. This setting is commonly used for highlights or to remove black areas of the movie clip.

5

"lighten"

Selects the lighter of the constituent colors of the movie clip and those of the background (the ones with the larger values). This setting is commonly used for superimposing type.

For example, if the movie clip has a pixel with an RGB value of 0xFFCC33, and the background pixel has an RGB value of 0xDDF800, then the resulting RGB value for the displayed pixel is 0xFFF833 (because 0xFF > 0xDD, 0xCC 0x00 = 33).

6

"darken"

Selects the darker of the constituent colors of the movie clip and those of the background (the ones with the smaller values). This setting is commonly used for superimposing type.

For example, if the movie clip has a pixel with an RGB value of 0xFFCC33, and the background pixel has an RGB value of 0xDDF800, the resulting RGB value for the displayed pixel is 0xDDCC00 (because 0xFF > 0xDD, 0xCC 0x00 = 33).

7

"difference"

Compares the constituent colors of the movie clip with those of its background, and subtracts the darker of the values of the two constituent colors from the lighter one. This setting is commonly used for more vibrant colors.

For example, if the movie clip has a pixel with a RGB value of 0xFFCC33, and the background pixel has an RGB value of 0xDDF800, the resulting RGB value for the displayed pixel is 0x222C33 (because 0xFF - 0xDD = 0x22, 0xF8 - 0xCC = 0x2C, and 0x33 - 0x00 = 0x33).

8

"add"

Adds the values of the constituent colors of the movie clip to those of its background, applying a ceiling of 0xFF. This setting is commonly used for animating a lightening dissolve between two objects.

For example, if the movie clip has a pixel with an RGB value of 0xAAA633, and the background pixel has an RGB value of 0xDD2200, the resulting RGB value for the displayed pixel is 0xFFC833 (because 0xAA + 0xDD > 0xFF, 0xA6 + 0x22 = 0xC8, and 0x33 + 0x00 = 0x33).

9

"subtract"

Subtracts the values of the constituent colors in the movie clip from those of the background, applying a floor of 0. This setting is commonly used for animating a darkening dissolve between two objects.

For example, if the movie clip has a pixel with an RGB value of 0xAA2233, and the background pixel has an RGB value of 0xDDA600, the resulting RGB value for the displayed pixel is 0x338400 (because 0xDD - 0xAA = 0x33, 0xA6 - 0x22 = 0x84, and 0x00 - 0x33 < 0x00).

10

"invert"

Inverts the background.

11

"alpha"

Applies the alpha value of each pixel of the movie clip to the background. This requires the "layer" blendMode setting to be applied to a parent movie clip. For example, in the illustration, the parent movie clip, which is a white background, has blendMode = "layer".

12

"erase"

Erases the background based on the alpha value of the movie clip. This requires the "layer" blendMode to be applied to a parent movie clip. For example, in the illustration, the parent movie clip, which is a white background, has blendMode = "layer".

13

"overlay"

Adjusts the color of each bitmap based on the darkness of the background. If the background is lighter than 50% gray, the movie clip and background colors are screened, which results in a lighter color. If the background is darker than 50% gray, the colors are multiplied, which results in a darker color. This setting is commonly used for shading effects.

14

"hardlight"

Adjusts the color of each bitmap based on the darkness of the movie clip. If the movie clip is lighter than 50% gray, the movie clip and background colors are screened, which results in a lighter color. If the movie clip is darker than 50% gray, the colors are multiplied, which results in a darker color. This setting is commonly used for shading effects.

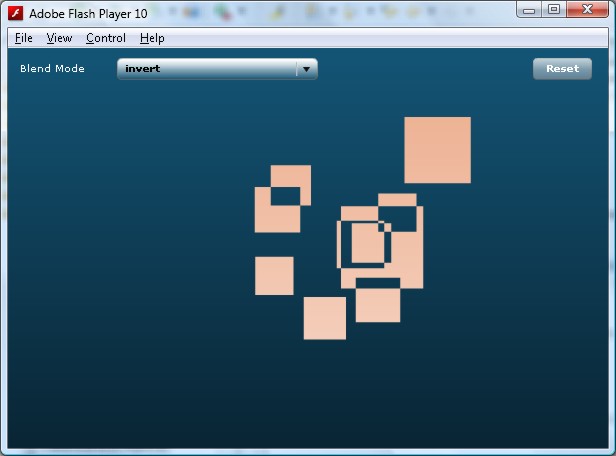

The demo allows you to select from each effect (although some, like erase, only work when you set different layers to have different blend modes and so will have no effect). As you'll see if can be quite easy to add some interesting effects to your 3D scene using the blend mode property.
